n8n DrawThings

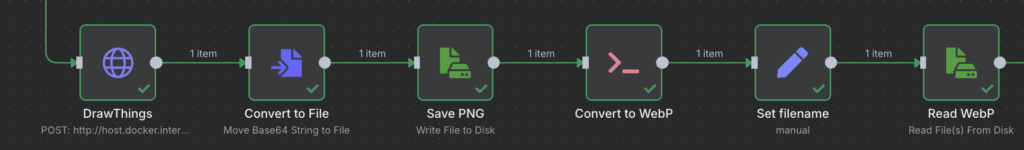

For my workflow I have integrated DrawThings, the diagram of it looks like:

Steps to reproduce:

• Assuming n8n is in Docker and DrawThings are on the host URL, it should be http://host.docker.internal:7860/sdapi/v1/txt2img. We need to use JSON, not fields, because n8n converts them to strings, and n8n has problems with interpretation. In my case, it’s:

{
    "height": 576,
    "width": 1024,
    "seed": -1,
    "prompt": "{{ $json.output.replaceAll('"', '\'').replaceAll('\n', '') }}",
    "batch_size": 1
}

• Next, we need to move the Base64 string to the file using the field images[0] and put it in the data field.
• We save PNG as e.g. /tmp/{{ $now.format('yyyy-MM-dd_HH-mm-ss') }}.png
• For conversion to WebP, we use a simple script and the SharpJS library executed as: npm run convert -- {{ $json.fileName }}

// convert.js
const fs = require('fs');
const sharp = require('sharp');

async function convertPngToJpeg(filePath) {
    const outputPath = filePath.replace(/\.png$/i, '.webp');
    const input = fs.readFileSync(filePath);

    const output = await sharp(input).webp().toBuffer();

    fs.writeFileSync(outputPath, output);
    console.log(`Converted: ${outputPath} end.`);
}

const inputPath = process.argv[2];
if (!inputPath) {
    console.error('Usage: node convert.js <path-to-png>');
    process.exit(1);
}

convertPngToJpeg(inputPath);

• The next thing is to get the filename from stdout.: {{ $json.stdout.match(/Converted: (.*) end./)[1] }} and pass it as filename
• The last link is to read WebP, for example, sending it to WordPress (using the filename from the previous step).

Hope it helps or inspires someone to use different tools 🙂

EDIT: I have added watermark – still probably I will need to play a bit with alpha, and sizes:

// convert.js
const fs = require('fs');
const sharp = require('sharp');

async function convertPngToJpeg(filePath) {
    const outputPath = filePath.replace(/\.png$/i, '.webp');

    const { width, height } = await sharp(filePath).metadata();

    const watermark = `
    <svg width="${width}" height="${height}">
      <style>
        .watermark {
          fill: rgba(255,255,255,0.4);        /* main text color */
          font-size: 18px;
          font-family: sans-serif;
          stroke: rgba(100,100,100,0.4);            /* outline color */
          stroke-width: 1px;                  /* thickness of outline */
          paint-order: stroke fill;           /* ensure stroke is drawn     under fill */
        }
      </style>
      <text x="${width - 20}" y="${height - 20}" text-anchor="end" class="watermark">
        AI generated
      </text>
    </svg>
    `;

    await sharp(filePath)
      .composite([{ input: Buffer.from(watermark) }])
      .toFile(filePath + '_wm');

    const input = fs.readFileSync(filePath + '_wm');
    const output = await sharp(input).webp().toBuffer();

    fs.writeFileSync(outputPath, output);
    console.log(`Converted: ${outputPath} end.`);
}

const inputPath = process.argv[2];
if (!inputPath) {
    console.error('Usage: node convert.js <path-to-png>');
    process.exit(1);
}

convertPngToJpeg(inputPath);
